- 產品型號：85557524
- 頻率：125MHZ
- 尺寸：5.0*3.2mm
- 產品介紹：Si514數據通信晶振,514FAA000115BAGR,Skyworks可編碼振蕩器，尺寸5032mm,頻率1125MHZ，輸出邏輯LVDS，電壓2.5V，頻率穩定性50ppm，進口有源晶振，Skyworks差分振蕩...
-
Si514數據通信晶振,514FAA000115BAGR,Skyworks可編碼振蕩器
.jpg)
.jpg)
Si514數據通信晶振,514FAA000115BAGR,Skyworks可編碼振蕩器，尺寸5032mm,頻率125MHZ，輸出邏輯LVDS，電壓2.5V，頻率穩定性50ppm，進口有源晶振，Skyworks差分振蕩器，思佳訊差分晶振，5032mm差分晶振，六腳有源晶振，差分貼片晶振，差分石英振蕩器，時鐘振蕩器，差分貼片晶振，有源晶體振蕩器，LVDS輸出晶振，LVDS差分晶體振蕩器，OSC差分晶振，有源差分晶振，智能家電差分晶振，工業自動化差分晶振，數據通信差分晶振，儀器儀表差分晶振，基站專用差分晶振，測試測量差分晶振，無線通信差分晶振，低電壓差分晶振，低抖動差分晶振，高頻差分晶振，高質量差分晶振，低耗能差分晶振，低相位差分晶振，低功耗差分晶振，具備良好的可靠性以及穩定性.
有源晶振產品非常適合用于智能家電，工業自動化，數據通信，儀器儀表，基站應用，測試測量，無線通信等領域。Si514數據通信晶振,514FAA000115BAGR,Skyworks可編碼振蕩器.
.jpg)
Si514數據通信晶振,514FAA000115BAGR,Skyworks可編碼振蕩器 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||
| Supply Voltage | V DD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | V | ||||||||||
| Supply Current | IDD |
CMOS, 100 MHz, single-ended |
— | 21 | 26 | mA | ||||||||
|
LVDS (output enabled) |
— | 19 | 23 | mA | ||||||||||
|
LVPECL (output enabled) |
— | 39 | 43 | mA | ||||||||||
|
HCSL (output enabled) |
— | 41 | 44 | mA | ||||||||||
|
Tristate (output disabled) |
— | — | 18 | mA | ||||||||||
| Operating Temperature | TA | –40 | — | 85 | oC | |||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||
| SDA, SCL Input Voltage High | VIH | 0.80 x V DD | — | — | V | |||||||||
| SDA, SCL Input Voltage Low | VIL | — | — | 0.20 x V DD | V | |||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||
|
Programmable Frequency Range |
FO | CMOS, Dual CMOS | 0.1 | — | 212.5 | MHz | ||||||||
| FO | LVDS/LVPECL/HCSL | 125 | MHz | |||||||||||
|
Frequency Reprogramming Resolution |
M RES | — | 0.026 | — | ppb | |||||||||
|
Frequency Range for Small Frequency Change (Continuous Glitchless Output) |
From center frequency | –1000 | — | +1000 | ppm | |||||||||
|
Settling time for Small Frequency Change |
<±1000 ppm from center frequency |
— | — | 100 | µs | |||||||||
|
Settling time for Large Frequency Change (Out- put Squelched during Fre- quency Transition) |
>±1000 ppm from center frequency |
— | — | 10 | ms | |||||||||
| Total Stability* | Frequency Stability Grade C | –30 | — | +30 | ppm | |||||||||
| Frequency Stability Grade B | –50 | — | +50 | ppm | ||||||||||
| Frequency Stability Grade A | –100 | — | +100 | ppm | ||||||||||
| Temperature Stability | Frequency Stability Grade C | –20 | — | +20 | ppm | |||||||||
| Frequency Stability Grade B | –25 | — | +25 | ppm | ||||||||||
| Frequency Stability Grade A | –50 | — | +50 | ppm | ||||||||||
| Startup Time | TSU |
Minimum V DD until output frequency (FO) within specification |
— | — | 10 | ms | ||||||||
| Disable Time | TD | FO< 10 MHz | — | — | 40 | µs | ||||||||
| FO> 10 MHz | — | — | 5 | µs | ||||||||||
| Enable Time | TE | FO< 10 MHz | — | — | 60 | µs | ||||||||
| FO> 10 MHz | — | — | 20 | µs | ||||||||||
.jpg)
Si514數據通信晶振,514FAA000115BAGR,Skyworks可編碼振蕩器 尺寸圖
Si514數據通信晶振,514FAA000115BAGR,Skyworks可編碼振蕩器
OSC晶振產品特性
可編程到任何頻率從100kHz到250MHz
0.026 ppb頻率調諧決議
OE、電源故障抑制接通和頻率轉換
低抖動操作
2至4周交付周期
總體穩定性包括10年變老
綜合生產試驗
覆蓋范圍包括晶體ESR和DLD
用于電源的片上LDO噪聲濾波
3.3、2.5或1.8 V操作
差分（LVPECL、LVDS、HCSL）或CMOS輸出選項
可選集成1:2 CMOS扇出緩存

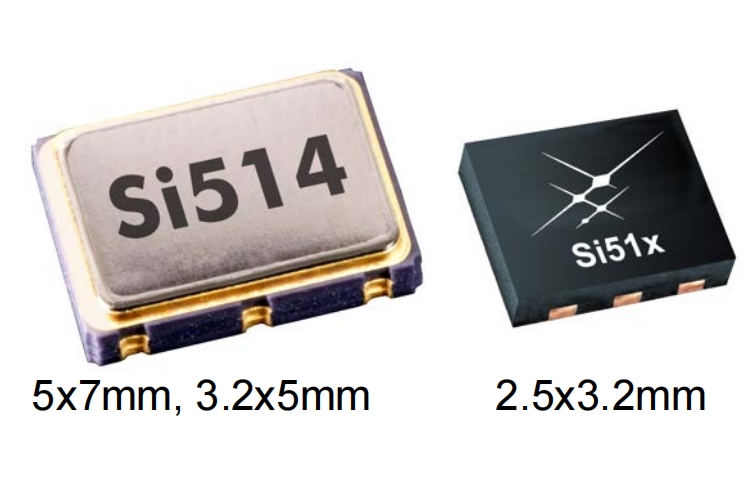

行業標準5x7、3.2x5和2.5x3.2 mm包裝
–40至85℃操作
0.026 ppb頻率調諧決議
OE、電源故障抑制接通和頻率轉換
低抖動操作
2至4周交付周期
總體穩定性包括10年變老
綜合生產試驗
覆蓋范圍包括晶體ESR和DLD
用于電源的片上LDO噪聲濾波
3.3、2.5或1.8 V操作
差分（LVPECL、LVDS、HCSL）或CMOS輸出選項
可選集成1:2 CMOS扇出緩存
行業標準5x7、3.2x5和2.5x3.2 mm包裝
–40至85℃操作
| Mfr Part # | Mfr | Description | Series | Frequency | Output | Voltage - Supply |
| 514BCC000107BAG | Skyworks有源晶振 | XTAL OSC XO 10.0000MHZ LVDS SMD | Si514 | 10 MHz | LVDS | 3.3V |
| 514BCC000144BAG | Skyworks有源晶振 | XTAL OSC XO 80.0000MHZ LVDS SMD | Si514 | 80 MHz | LVDS | 3.3V |
| 514BCC000163BAG | Skyworks有源晶振 | XTAL OSC XO 20.0000MHZ LVDS SMD | Si514 | 20 MHz | LVDS | 3.3V |
| 514BCC000932BAG | Skyworks有源晶振 | XTAL OSC XO 70.6560MHZ LVDS SMD | Si514 | 70.656 MHz | LVDS | 3.3V |
| 514BCC001289BAG | Skyworks有源晶振 | XTAL OSC XO 114.5440MHZ LVDS SMD | Si514 | 114.544 MHz | LVDS | 3.3V |
| 514JAB000112BAG | Skyworks有源晶振 | XTAL OSC XO 10.0000MHZ LVDS SMD | Si514 | 10 MHz | LVDS | 1.8V |
| 514JAB000482BAG | Skyworks有源晶振 | XTAL OSC XO 148.3500MHZ LVDS SMD | Si514 | 148.35 MHz | LVDS | 1.8V |
| 514BAB000159BAG | Skyworks有源晶振 | XTAL OSCILLATOR | Si514 | 148.5 MHz | LVDS | 3.3V |
| 514JCC002362BAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 94 MHz | LVDS | 1.8V |
| 514JAB000115BAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 125 MHz | LVDS | 1.8V |
| 514ACC000773CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 98.304 MHz | LVPECL | 3.3V |
| 514JAB000121BAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 100 MHz | LVDS | 1.8V |
| 514FCC000111CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 25 MHz | LVDS | 2.5V |
| 514AAB000118CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 156.25 MHz | LVPECL | 3.3V |
| 514BCA000126AAGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si514 | 200 MHz | LVDS | 3.3V |
| 514JCA000790AAGR | Skyworks有源晶振 | XTAL OSC XO 32.0000MHZ LVDS SMD | Si514 | 32 MHz | LVDS | 1.8V |
| 514JCA001536AAGR | Skyworks有源晶振 | XTAL OSC XO 85.0000MHZ LVDS SMD | Si514 | 85 MHz | LVDS | 1.8V |
| 514BBB002312CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 148.425824 MHz | LVDS | 3.3V |
| 514BBB000115CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 125 MHz | LVDS | 3.3V |
| 514FBB000115CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 125 MHz | LVDS | 2.5V |
| 514BBB002216BAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 156.25 MHz | LVDS | 3.3V |
| 514AAA000110BAGR | Skyworks有源晶振 | XTAL OSC XO 74.2500MHZ LVPECL | Si514 | 74.25 MHz | LVPECL | 3.3V |
| 514AAA000776BAGR | Skyworks有源晶振 | XTAL OSC XO 100.0000KHZ LVPECL | Si514 | 100 kHz | LVPECL | 3.3V |
| 514BAA000643BAGR | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVDS SMD | Si514 | 212.5 MHz | LVDS | 3.3V |
| 514BCB000112BAGR | Skyworks有源晶振 | XTAL OSC XO 10.0000MHZ LVDS SMD | Si514 | 10 MHz | LVDS | 3.3V |
| 514BCB000118BAGR | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si514 | 156.25 MHz | LVDS | 3.3V |
| 514BCB000121BAGR | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si514 | 100 MHz | LVDS | 3.3V |
| 514BCB001605BAGR | Skyworks有源晶振 | XTAL OSC XO 93.2000MHZ LVDS SMD | Si514 | 93.2 MHz | LVDS | 3.3V |
| 514BCB001741BAGR | Skyworks有源晶振 | XTAL OSC XO 70.6560MHZ LVDS SMD | Si514 | 70.656 MHz | LVDS | 3.3V |
| 514BCB001853BAGR | Skyworks有源晶振 | XTAL OSC差分晶振 XO 55.0000MHZ LVDS SMD | Si514 | 55 MHz | LVDS | 3.3V |
| 514BCB001855BAGR | Skyworks有源晶振 | XTAL OSC XO 235.4000KHZ LVDS SMD | Si514 | 235.4 kHz | LVDS | 3.3V |
| 514BCB001856BAGR | Skyworks有源晶振 | XTAL OSC XO 23.5400MHZ LVDS SMD | Si514 | 23.54 MHz | LVDS | 3.3V |
| 514BCB001857BAGR | Skyworks有源晶振 | XTAL OSC XO 932.0000KHZ LVDS SMD | Si514 | 932 kHz | LVDS | 3.3V |
| 514BCB001858BAGR | Skyworks有源晶振 | XTAL OSC XO 864.9000KHZ LVDS SMD | Si514 | 864.9 kHz | LVDS | 3.3V |
| 514BCB001859BAGR | Skyworks有源晶振 | XTAL OSC XO 170.0000MHZ LVDS SMD | Si514 | 170 MHz | LVDS | 3.3V |
| 514FAA000115BAGR | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | Si514 | 125 MHz | LVDS | 2.5V |
| 514FAA000118BAGR | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si514 | 156.25 MHz | LVDS | 2.5V |
| 514FAC000121BAGR | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si514 | 100 MHz | LVDS | 2.5V |
| 514FCB000107BAGR | Skyworks有源晶振 | XTAL OSC XO 10.0000MHZ LVDS SMD | Si514 | 10 MHz | LVDS | 2.5V |
| 514FCB000115BAGR | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | Si514 | 125 MHz | LVDS | 2.5V |
| 514FCB000118BAGR | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si514 | 156.25 MHz | LVDS | 2.5V |
| 514JAA000112BAGR | Skyworks有源晶振 | XTAL OSC XO 10.0000MHZ LVDS SMD | Si514 | 10 MHz | LVDS | 1.8V |
| 514JAA000622BAGR | Skyworks有源晶振 | XTAL OSC XO 54.0000MHZ LVDS SMD | Si514 | 54 MHz | LVDS | 1.8V |
| 514JCB000159BAGR | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si514 | 148.5 MHz | LVDS | 1.8V |
| 514FAA000126BAGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si514 | 200 MHz | LVDS | 2.5V |
| 514JAA000121BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED | Si514 | 100 MHz | LVDS | 1.8V |
| 514BCB000115CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 125 MHz | LVDS | 3.3V |
| 514BAA000118CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 156.25 MHz | LVDS | 3.3V |
| 514BAA000110CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 74.25 MHz | LVDS | 3.3V |
| 514JAA000112CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 10 MHz | LVDS | 1.8V |
| 514BAA000112CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 10 MHz | LVDS | 3.3V |
| 514BAA000121BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 100 MHz | LVDS | 3.3V |
| 514AAA000111CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 25 MHz | LVPECL | 3.3V |
| 514BAA002344BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 219 MHz | LVDS | 3.3V |
| 514BAA002216BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 156.25 MHz | LVDS | 3.3V |
| 514BAA000157CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 50 MHz | LVDS | 3.3V |
| 514BAA002216CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 156.25 MHz | LVDS | 3.3V |
| 514AAA000126CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 200 MHz | LVPECL | 3.3V |
| 514JAA002247BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 245.76 MHz | LVDS | 1.8V |
| 514AAA002124CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 457 kHz | LVPECL | 3.3V |
| 514AAA002133CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 165 MHz | LVPECL | 3.3V |
| 514AAA000383CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 150 MHz | LVPECL | 3.3V |
| 514AAA000159CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 148.5 MHz | LVPECL | 3.3V |
| 514BCB000159CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 148.5 MHz | LVDS | 3.3V |
| 514AAA000112CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 10 MHz | LVPECL | 3.3V |
| 514EAA000112CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 10 MHz | LVPECL | 2.5V |
| 514AAA001992CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 12.8 MHz | LVPECL | 3.3V |
| 514BAA002377CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 66.6666666 MHz | LVDS | 3.3V |
| 514ABB000136BAG | Skyworks有源晶振 | XTAL OSC XO 160.0000MHZ LVPECL | Si514 | 160 MHz | LVPECL | 3.3V |
| 514BBB000118BAG | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si514 | 156.25 MHz | LVDS | 3.3V |
| 514BBB000121BAG | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si514 | 100 MHz | LVDS | 3.3V |
| 514BBB000159BAG | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si514 | 148.5 MHz | LVDS | 3.3V |
| 514BBB000482BAG | Skyworks有源晶振 | XTAL OSC XO 148.3500MHZ LVDS SMD | Si514 | 148.35 MHz | LVDS | 3.3V |
| 514BBB000744BAG | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si514 | 156.25 MHz | LVDS | 3.3V |
| 514BBB001011BAG | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si514 | 148.5 MHz | LVDS | 3.3V |
| 514EBB000159BAG | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVPECL | Si514 | 148.5 MHz | LVPECL | 2.5V |
| 514FBB000121BAG | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si514 | 100 MHz | LVDS | 2.5V |
| 514FBB000159BAG | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si514 | 148.5 MHz | LVDS | 2.5V |
| 514JBB000112BAG | Skyworks有源晶振 | XTAL OSC XO 10.0000MHZ LVDS SMD | Si514 | 10 MHz | LVDS | 1.8V |
