- 產品型號：55308531
- 頻率：156.25MHz
- 尺寸：7.0x5.0mm
- 產品介紹：Skyworks電信應用晶振,536AC156M250DG,Si536低抖動差分晶振，美國進口晶振，Skyworks思佳訊晶振，型號：Si536系列，編碼為：536AC156M250DG，頻率為：156.250MHz，...
-
Skyworks電信應用晶振,536AC156M250DG,Si536低抖動差分晶振
.jpg)
.jpg)
Skyworks電信應用晶振,536AC156M250DG,Si536低抖動差分晶振，美國進口晶振，Skyworks思佳訊晶振，型號：Si536系列，編碼為：536AC156M250DG，頻率為：156.250MHz，小體積晶振尺寸：7.0x5.0x1.8mm封裝，六腳貼片晶振，LVPECL輸出差分晶振，石英晶振，有源晶振，差分晶體振蕩器。具有超小型，輕薄型，低抖動，低功耗，低相位噪聲，低電源電壓，高精度，高性能，高品質等特點。應用于：藍牙晶振，10/40/100G數據中心，10G以太網，交換機/路由器，光纖通道/SAS/存儲，企業服務器，網絡，電信，光模塊，無線網絡等應用。

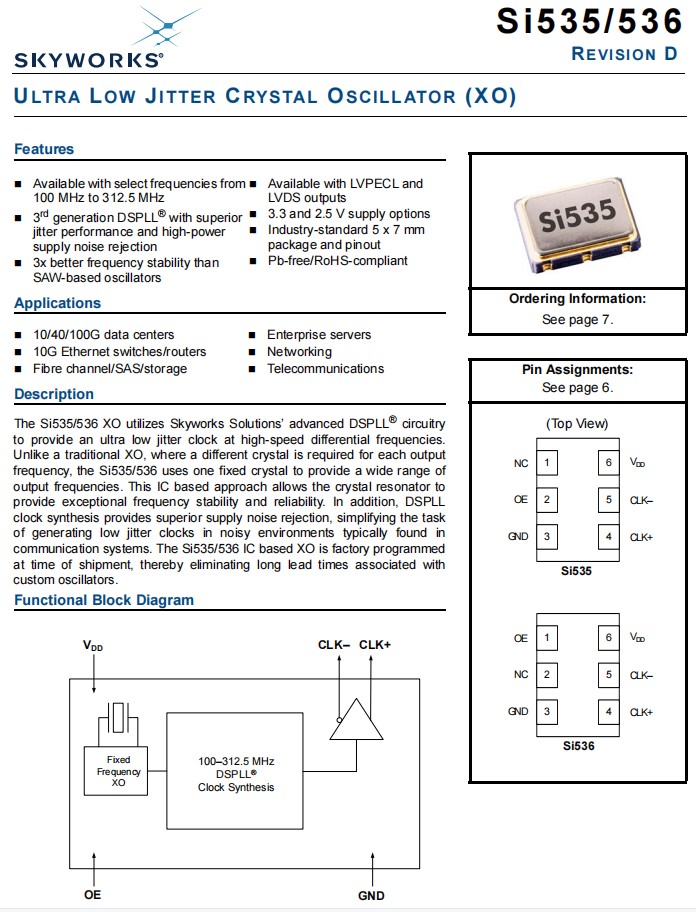

Si536 XO利用天空解決方案的先進DSPLL®電路提供一個高速差分頻率的超低抖動時鐘。與傳統的XO不同，每個輸出頻率都需要一個不同的晶體，而Si536石英晶體振蕩器使用一個固定的晶體來提供一個大范圍的輸出頻率。這種基于集成電路的方法允許晶體諧振器提供特殊的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供了優越的電源噪聲抑制，簡化了在通信系統中通常發現的噪聲環境中產生低抖動時鐘的任務。基于Si536 IC的XO在裝運時被工廠編程，從而消除了與自定義振蕩器相關的長時間的前置時間。
.jpg)
Skyworks晶體振蕩器,535BC312M500DGR,Si535光纖通道晶振,參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| Nominal Frequency1 | fO | LVPECL/LVDS | 156.25 | MHz | ||||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||
| Temperature Stability1,2 |
–7 –20 |
— — |
+7 +20 |
ppm | ||||||||||||||||||
| Aging | fa | Frequency drift over first year | ±3 | ppm | ||||||||||||||||||
|
Frequency drift over 20 year life |
— | — | ±10 | ppm | ||||||||||||||||||
| Total Stability2 | Temp stability = ±20 ppm | — | — | ±31.5 | ppm | |||||||||||||||||
| Temp stability = ±7 ppm | — | — | 20 | |||||||||||||||||||
| Powerup Time3 | tOSC | TA = –40°C — +85°C | 10 | ms | ||||||||||||||||||
.jpg)

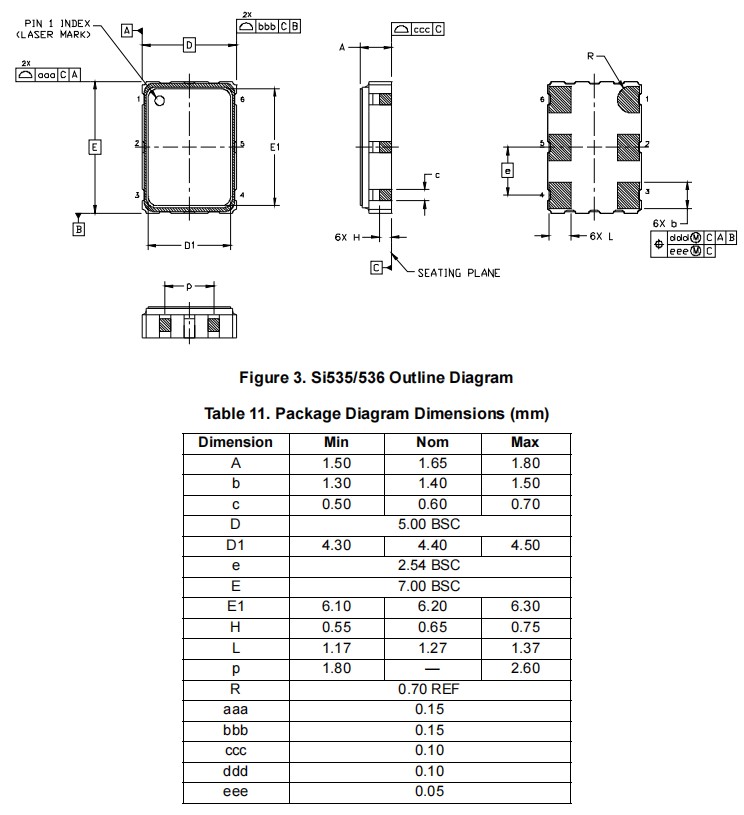

Skyworks晶體振蕩器,535BC312M500DGR,Si535光纖通道晶振,尺寸圖
Skyworks晶體振蕩器,535BC312M500DGR,Si535光纖通道晶振
產品特點：
可選頻率從100 MHz到312.5 MHz
具有卓越抖動性能和高功率電源噪聲抑制的第三代DSPLL®
頻率穩定性是SAW振蕩器的3倍
可提供LVPECL和LVDS輸出有源晶振
3.3V和2.5V電源選項
行業標準5 x 7 mm封裝和引腳
無鉛/符合RoHS
Si535/536 XO支持多種選項，包括頻率、溫度穩定性、輸出格式和VDD。Si535和Si536 XO系列采用工業標準，RoHS兼容，6墊，5x7mm封裝。Si536系列支持一個用于LVPECL和LVDS輸出格式的替代OE針腳（針腳#1）

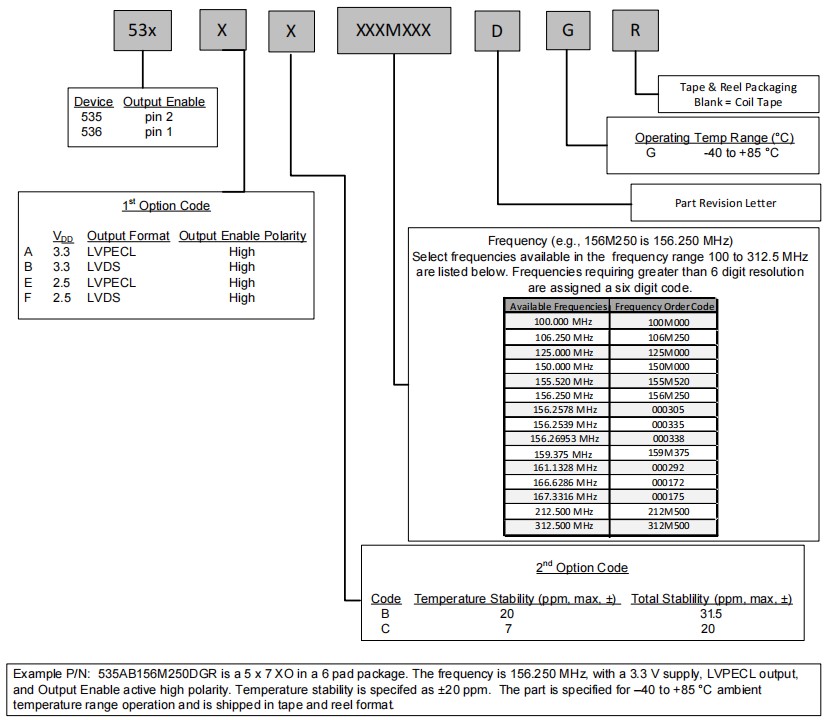

| 編碼 | 進口晶振 | 系列 | 頻率 | 輸出 | 電壓 |
| 536AB156M250DG | Skyworks晶振 | Si536 | 156.25 MHz | LVPECL | 3.3V |
| 536AC125M000DG | Skyworks晶振 | Si536 | 125 MHz | LVPECL | 3.3V |
| 536AC156M250DG | Skyworks晶振 | Si536 | 156.25 MHz | LVPECL | 3.3V |
| 536AB000335DGR | Skyworks晶振 | Si536 | 156.2539 MHz | LVPECL | 3.3V |
| 536AB100M000DGR | Skyworks晶振 | Si536 | 100 MHz | LVPECL | 3.3V |
| 536AB125M000DGR | Skyworks晶振 | Si536 | 125 MHz | LVPECL | 3.3V |
| 536AB155M520DGR | Skyworks晶振 | Si536 | 155.52 MHz | LVPECL | 3.3V |
| 536AB156M250DGR | Skyworks晶振 | Si536 | 156.25 MHz | LVPECL | 3.3V |
| 536EB000119DGR | Skyworks晶振 | Si536 | 167.331646 MHz | LVPECL | 2.5V |
| 536EB100M000DGR | Skyworks晶振 | Si536 | 100 MHz | LVPECL | 2.5V |
| 536EB125M000DGR | Skyworks晶振 | Si536 | 125 MHz | LVPECL | 2.5V |
| 536EB156M250DGR | Skyworks晶振 | Si536 | 156.25 MHz | LVPECL | 2.5V |
| 536AB000335DG | Skyworks晶振 | Si536 | 156.2539 MHz | LVPECL | 3.3V |
| 536AB000172DG | Skyworks晶振 | Si536 | 166.6286 MHz | LVPECL | 3.3V |
| 536AB000175DG | Skyworks晶振 | Si536 | 167.3316 MHz | LVPECL | 3.3V |
| 536AB000292DG | Skyworks晶振 | Si536 | 161.1328 MHz | LVPECL | 3.3V |
| 536AB000305DG | Skyworks晶振 | Si536 | 156.2578 MHz | LVPECL | 3.3V |
| 536AB106M250DG | Skyworks晶振 | Si536 | 106.25 MHz | LVPECL | 3.3V |
| 536AB150M000DG | Skyworks晶振 | Si536 | 150 MHz | LVPECL | 3.3V |
| 536AB159M375DG | Skyworks晶振 | Si536 | 159.375 MHz | LVPECL | 3.3V |
| 536AB312M500DG | Skyworks晶振 | Si536 | 312.5 MHz | LVPECL | 3.3V |
| 536AC000172DG | Skyworks晶振 | Si536 | 166.6286 MHz | LVPECL | 3.3V |
| 536AC000175DG | Skyworks晶振 | Si536 | 167.3316 MHz | LVPECL | 3.3V |
| 536AC000292DG | Skyworks晶振 | Si536 | 161.1328 MHz | LVPECL | 3.3V |
| 536AC106M250DG | Skyworks晶振 | Si536 | 106.25 MHz | LVPECL | 3.3V |
| 536AC150M000DG | Skyworks晶振 | Si536 | 150 MHz | LVPECL | 3.3V |
| 536AC159M375DG | Skyworks晶振 | Si536 | 159.375 MHz | LVPECL | 3.3V |
| 536AC212M500DG | Skyworks晶振 | Si536 | 212.5 MHz | LVPECL | 3.3V |
| 536AC312M500DG | Skyworks晶振 | Si536 | 312.5 MHz | LVPECL | 3.3V |
| 536EB000172DG | Skyworks晶振 | Si536 | 166.6286 MHz | LVPECL | 2.5V |
| 536EB000175DG | Skyworks晶振 | Si536 | 167.3316 MHz | LVPECL | 2.5V |
| 536EB000292DG | Skyworks晶振 | Si536 | 161.1328 MHz | LVPECL | 2.5V |
| 536EB000305DG | Skyworks晶振 | Si536 | 156.2578 MHz | LVPECL | 2.5V |
| 536EB106M250DG | Skyworks晶振 | Si536 | 106.25 MHz | LVPECL | 2.5V |
| 536EB150M000DG | Skyworks晶振 | Si536 | 150 MHz | LVPECL | 2.5V |
| 536EB155M520DG | 石英晶振 | Si536 | 155.52 MHz | LVPECL | 2.5V |
| 536EB159M375DG | Skyworks晶振 | Si536 | 159.375 MHz | LVPECL | 2.5V |
| 536EB212M500DG | Skyworks晶振 | Si536 | 212.5 MHz | LVPECL | 2.5V |
| 536EB312M500DG | Skyworks晶振 | Si536 | 312.5 MHz | LVPECL | 2.5V |
| 536EC000172DG | Skyworks晶振 | Si536 | 166.6286 MHz | LVPECL | 2.5V |
| 536EC000175DG | Skyworks晶振 | Si536 | 167.3316 MHz | LVPECL | 2.5V |
| 536EC000292DG | Skyworks晶振 | Si536 | 161.1328 MHz | LVPECL | 2.5V |
| 536EC106M250DG | Skyworks晶振 | Si536 | 106.25 MHz | LVPECL | 2.5V |
| 536EC150M000DG | Skyworks晶振 | Si536 | 150 MHz | LVPECL | 2.5V |
| 536EC155M520DG | Skyworks晶振 | Si536 | 155.52 MHz | LVPECL | 2.5V |
| 536EC159M375DG | Skyworks晶振 | Si536 | 159.375 MHz | LVPECL | 2.5V |
| 536EC212M500DG | Skyworks晶振 | Si536 | 212.5 MHz | LVPECL | 2.5V |
| 536EC312M500DG | Skyworks晶振 | Si536 | 312.5 MHz | LVPECL | 2.5V |
| 536AB125M000DG | Skyworks晶振 | Si536 | 125 MHz | LVPECL | 3.3V |
| 536EB125M000DG | Skyworks晶振 | Si536 | 125 MHz | LVPECL | 2.5V |
| 536AB000172DGR | Skyworks晶振 | Si536 | 166.6286 MHz | LVPECL | 3.3V |
| 536AB000175DGR | Skyworks晶振 | Si536 | 167.3316 MHz | LVPECL | 3.3V |
| 536AB000292DGR | Skyworks晶振 | Si536 | 161.1328 MHz | LVPECL | 3.3V |
| 536AB000305DGR | Skyworks晶振 | Si536 | 156.2578 MHz | LVPECL | 3.3V |
| 536AB106M250DGR | Skyworks晶振 | Si536 | 106.25 MHz | LVPECL | 3.3V |
| 536AB150M000DGR | Skyworks晶振 | Si536 | 150 MHz | LVPECL | 3.3V |
| 536AB159M375DGR | Skyworks晶振 | Si536 | 159.375 MHz | LVPECL | 3.3V |
| 536AB312M500DGR | Skyworks晶振 | Si536 | 312.5 MHz | LVPECL | 3.3V |
| 536AC000172DGR | Skyworks晶振 | Si536 | 166.6286 MHz | LVPECL | 3.3V |
| 536AC000175DGR | Skyworks晶振 | Si536 | 167.3316 MHz | LVPECL | 3.3V |
| 536AC000292DGR | Skyworks晶振 | Si536 | 161.1328 MHz | LVPECL | 3.3V |
| 536AC106M250DGR | Skyworks晶振 | Si536 | 106.25 MHz | LVPECL | 3.3V |
| 536AC150M000DGR | Skyworks晶振 | Si536 | 150 MHz | LVPECL | 3.3V |
| 536AC159M375DGR | Skyworks晶振 | Si536 | 159.375 MHz | LVPECL | 3.3V |
| 536AC212M500DGR | Skyworks晶振 | Si536 | 212.5 MHz | LVPECL | 3.3V |
| 536AC312M500DGR | Skyworks晶振 | Si536 | 312.5 MHz | LVPECL | 3.3V |
| 536EB000172DGR | Skyworks晶振 | Si536 | 166.6286 MHz | LVPECL | 2.5V |
| 536EB000175DGR | Skyworks晶振 | Si536 | 167.3316 MHz | LVPECL | 2.5V |
| 536EB000292DGR | Skyworks晶振 | Si536 | 161.1328 MHz | LVPECL | 2.5V |
| 536EB000305DGR | Skyworks晶振 | Si536 | 156.2578 MHz | LVPECL | 2.5V |
| 536EB106M250DGR | Skyworks晶振 | Si536 | 106.25 MHz | LVPECL | 2.5V |
| 536EB150M000DGR | Skyworks晶振 | Si536 | 150 MHz | LVPECL | 2.5V |
| 536EB155M520DGR | Skyworks晶振 | Si536 | 155.52 MHz | LVPECL | 2.5V |
| 536EB159M375DGR | Skyworks晶振 | Si536 | 159.375 MHz | LVPECL | 2.5V |
| 536EB212M500DGR | Skyworks晶振 | Si536 | 212.5 MHz | LVPECL | 2.5V |
| 536EB312M500DGR | Skyworks晶振 | Si536 | 312.5 MHz | LVPECL | 2.5V |
| 536EC000172DGR | Skyworks晶振 | Si536 | 166.6286 MHz | LVPECL | 2.5V |
| 536EC000175DGR | Skyworks晶振 | Si536 | 167.3316 MHz | LVPECL | 2.5V |
| 536EC000292DGR | Skyworks晶振 | Si536 | 161.1328 MHz | LVPECL | 2.5V |
| 536EC106M250DGR | Skyworks晶振 | Si536 | 106.25 MHz | LVPECL | 2.5V |
| 536EC150M000DGR | Skyworks晶振 | Si536 | 150 MHz | LVPECL | 2.5V |
| 536EC155M520DGR | Skyworks晶振 | Si536 | 155.52 MHz | LVPECL | 2.5V |
| 536EC159M375DGR | Skyworks晶振 | Si536 | 159.375 MHz | LVPECL | 2.5V |
| 536EC212M500DGR | Skyworks晶振 | Si536 | 212.5 MHz | LVPECL | 2.5V |
| 536EC312M500DGR | Skyworks晶振 | Si536 | 312.5 MHz | LVPECL | 2.5V |
| 536AB100M000DG | Skyworks晶振 | Si536 | 100 MHz | LVPECL | 3.3V |
| 536AB155M520DG | Skyworks晶振 | Si536 | 155.52 MHz | LVPECL | 3.3V |
| 536EB000119DG | Skyworks晶振 | Si536 | 167.331646 MHz | LVPECL | 2.5V |
| 536EB100M000DG | Skyworks晶振 | Si536 | 100 MHz | LVPECL | 2.5V |
| 536AB212M500DGR | Skyworks晶振 | Si536 | 212.5 MHz | LVPECL | 3.3V |
| 536AB212M500DG | Skyworks晶振 | Si536 | 212.5 MHz | LVPECL | 3.3V |
| 536EB156M250DG | Skyworks晶振 | Si536 | 156.25 MHz | LVPECL | 2.5V |
| 536AC000305DGR | Skyworks晶振 | Si536 | 156.2578 MHz | LVPECL | 3.3V |
| 536AC000335DGR | Skyworks晶振 | Si536 | 156.2539 MHz | LVPECL | 3.3V |
| 536AC100M000DGR | Skyworks晶振 | Si536 | 100 MHz | LVPECL | 3.3V |
| 536AC125M000DGR | Skyworks晶振 | Si536 | 125 MHz | LVPECL | 3.3V |
| 536AC155M520DGR | Skyworks晶振 | Si536 | 155.52 MHz | LVPECL | 3.3V |
| 536AC156M250DGR | Skyworks晶振 | Si536 | 156.25 MHz | LVPECL | 3.3V |
| 536EC100M000DGR | Skyworks晶振 | Si536 | 100 MHz | LVPECL | 2.5V |
| 536EC125M000DGR | Skyworks晶振 | Si536 | 125 MHz | LVPECL | 2.5V |
| 536EC156M250DGR | Skyworks晶振 | Si536 | 156.25 MHz | LVPECL | 2.5V |
| 536AC000305DG | Skyworks晶振 | Si536 | 156.2578 MHz | LVPECL | 3.3V |
| 536AC000335DG | Skyworks晶振 | Si536 | 156.2539 MHz | LVPECL | 3.3V |
| 536AC100M000DG | Skyworks晶振 | Si536 | 100 MHz | LVPECL | 3.3V |
| 536AC155M520DG | Skyworks晶振 | Si536 | 155.52 MHz | LVPECL | 3.3V |
| 536EC100M000DG | Skyworks晶振 | Si536 | 100 MHz | LVPECL | 2.5V |
| 536EC125M000DG | Skyworks晶振 | Si536 | 125 MHz | LVPECL | 2.5V |
| 536EC156M250DG | Skyworks晶振 | Si536 | 156.25 MHz | LVPECL | 2.5V |
